HTFC-V cabinet centrifugal fan

HTFC-V cabinet centrifugal fan is a kind of back-tipping box-shaped centrifugal fan with blades. The product is composed of low-noise back-tipping centrifugal fan, motor, bearing, transmission parts, anechoic box, etc.

Category：

Centrifugal box fan

E-mail：shangfgkyx@infore.com

Add：400-1818-686

leave us a message

Details
Appearance & size

Commodity name: HTFC-V cabinet centrifugal fan
Commodity ID: 1060226476780904448

I. Product overview
1.1. HTFC-V cabinet centrifugal fan is a kind of backward tilting box-type centrifugal fan with blades. The product is composed of low noise backward tilting centrifugal fan, motor, bearing, transmission parts, anechoic box, etc. According to the different installation positions, 12 air inlet and outlet positions with different angles are provided to meet the different installation needs of users. According to the different requirements of fire protection and ventilation, there are two types: type A and type B; Type A motor is installed outside the box and used for fire fighting and smoke exhaust. It is named "centrifugal fire fighting and smoke exhaust fan" according to the provisions of the CCCF rules, and has been subjected to the high temperature resistance test by the National Fire Protection Conformity Assessment Center in accordance with GA211-2009 High Temperature Resistance Test Method for Fire Fighting and Smoke Exhaust Fan, and has passed the CCCF certification. The fan can operate continuously for 60 minutes at 280 ℃ high temperature; Type B motor is installed in the box for ventilation.
1.2. The fan is divided into 15 specifications according to the diameter of 250~1250mm, the series air volume is 1188-133463m3/h, and the total pressure is 345~2322Pa. The fan is divided into single-speed and double-speed. The two-speed fan is equipped with a two-speed motor to achieve two-speed speed regulation, which can meet the needs of users for performance regulation at different operating points. The fan can also be equipped with a variable-frequency motor and a variable-frequency controller to achieve variable-frequency speed regulation. It is recommended to lock the regulation frequency at 25Hz~50Hz.
1.3. In order to meet the needs of explosion-proof environment, the fan can be made into explosion-proof fan with explosion-proof grade of EXdIIBT4, which is suitable for places with flammable and explosive gases.
1.4. In order to meet the requirements of noise in different places, the fans can be equipped with mufflers of different lengths, and the fan silencing box can also be thickened to reduce the fan noise.
1.5. The fan can be equipped with primary, medium or high efficiency filters to improve the cleanliness of the air. The actual pressure loss should be considered when configuring the filter, and the length of the fan body should be appropriately increased.

2、 Product working conditions

working temperature

High temperature resistance

humidity

Medium conditions

Working power supply

-20~ +40℃(Continuous operation)

100℃(20 consecutive hours)

280℃(Can last for 60 minutes)

<90%

air

three-phase380V/50Hz

3、 Product application
Fans can be widely used in hotels, restaurants, auditoriums, cinemas, basements, factories, mines, enterprises, office buildings and other places for ventilation and smoke exhaust, especially for places requiring low noise and large air volume ventilation and smoke exhaust.

4、 Product configuration

4.1 Standard configuration
● Impeller;
● Movement (casing, collector, support);
● Motor;
● Bearing;
● Spindle;
● Pulley and belt;
● Belt cover (type A only);
● anechoic box;
● Motor regulating track;
● Inlet and outlet flanges.

4.2 Spare parts and accessories (indicate whether to purchase when ordering)
※ Damping equipment;
※ Muffler;
※ Filter;
※ Control box;
※ Butt flange;
※ Motor rain cover (type A only).

5、 Product processing technology
5.1. The impeller and casing of the fan are made of high-quality steel plates, all of which are molded and welded. The balance accuracy of the impeller is not more than 5.6 after dynamic and static balance correction.
5.2. The anechoic box of the fan adopts the frame and box plate assembly design. The frame is made of advanced metal cold bending machine by one stretch (aluminum alloy profiles can also be used according to the user's needs). The plate is color coated, with clean and beautiful surface and strong corrosion resistance. The inner layer is galvanized anechoic micro-perforated plate, the interlayer is flame-retardant and expandable polystyrene, and the EPS fireproof and thermal insulation composite plate (only limited to fire and smoke exhaust), which can further reduce the noise. The product can be disassembled on site.

6、 Location drawing of HTFC-V cabinet centrifugal fan

Note: When the motor frame number is ≤ 132, the motor is placed on the top of the chassis by default; When the motor frame number>132, the motor is placed on the box base by default. If it needs to be placed in other places, please consult the factory and indicate it when ordering.

Note: Our company can produce 12 types of air outlet positions according to different needs of users.

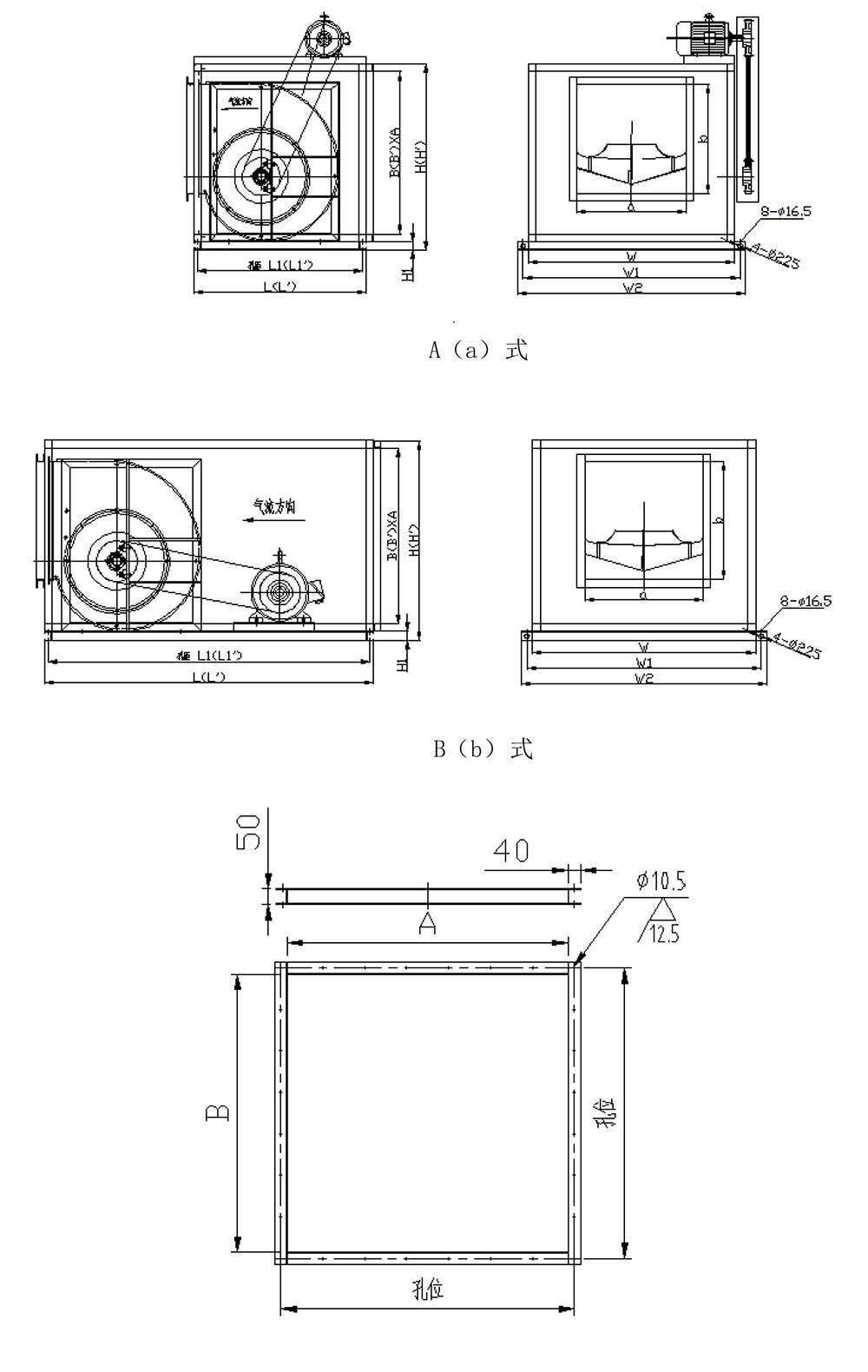

Outline and dimension of HTFC-V cabinet centrifugal fan

Machine number	height		Type A long		Type B long				width			Tuyere number	Air outlet		Air inlet
	H	H1	L	L1	L	L1	L'	L1'	W	W1	W2		transverseA	verticalB	transverse	verticalB
2.5	620	50	700	663	950	913	1050	1013	650	740	800	1,2,3,12	320	320	570	490
												4,7,8,11			570	620
												5,6,9,10			620	490
28	660	50	750	713	1020	983	1150	1113	700	790	850	1,2.3,12	355	355	620	530
												4,7,8,11			620	670
												5,6,9,10			670	530
3.15	720	50	810	773	1060	1023	1200	1163	780	870	930	1,2.3,12	400	400	700	590
												4,7,8,11			700	730
												5,6,9,10			730	590
3.55	800	50	900	863	1140	1103	1300	1263	870	960	1020	1,2,3,12	450	450	790	670
												4,7,8,11			790	820
												5,6,9,10			820	670
4	903	63	960	920	1260	1220	1420	1380	960	1080	1110	1,2,3,5,6,9,10,12	500	500	880	760
												47,8,11			880	880
4.5	1003	63	1040	1000	1340	1300	1540	1500	1050	1140	1200	1,23,12	560	560	970	860
												4,7,8,11			970	960
												5,6,9,10			960	860
5	1083	63	1140	1100	1450	1410	1650	1610	1200	1290	1350	1,2,3,12	630	630	1120	940
												4,7,8,11			1120	1060
												5,6,9,10			10®	940
5.6	1203	63	1250	1210	1650	1610	1800	1760	1350	1440	1500	1,23,12	715	715	1270	1060
												4,7,8,11			1270	1170
												5,6,9,10			1170	1060
6,3	1340	63	1380	1340	1720	1680	1920	1880	1580	1670	1730	1,2.3,12	801	801	1500	1197
												4,7,8,11			1500	1300
												5,6.9,10			1300	1197
7.1	1550	80	1470	1427	1950	1907	2200	2157	1650	1740	1800	1,2,3,4,7,8,11,12	898	898	1550	1370
												5,6,9,10			1370	1370
8	1723	80	1680	1637	2100	2057	2374	2331	1850	1940	2000	1,2,3,12	1006	1006	1750	1543
												4,7,8,11			1750	1580
												5,6,9,10			1580	1543
9	1860	100	1860	1812	2300	2252	2550	2502	2050	2140	2200	1,2,3,12	1130	1130	1950	1660
												4,7,8,11			1950	17G0
												5,6,9,10			1760	1660
10	1960	100	2000	1952	2450	2402	2735	2687	2170	2260	2320	1,2,3,12	1266	1266	2070	1760
												4,7,8,11			2070	1900
												5,6.9,10			1900	1760
11.2	2285	1O)	2300	2252	2800	2752	3170	3122	2300	2390	2450	1,2,3,5,6,9,10,12	1400	1400	2200	2085
												4,701			2200	2200
12.5	2525	120	2550	2497	3020	2967	3400	3347	2450	2540	2600	1,2,3,12	1563	1563	2350	2305
												4,7.8,11			2350	2450
												5,6,9,10			2450	2305

Remarks: 1. H and L are the overall dimensions of air vent No. 1, 4~12, and H 'and L' are the overall dimensions of air vent No. 2 and 3.
For installation methods 5, 6, 9, 10, W and L dimensions are shown in the above table, base channel steel W2=W, and installation hole distance W1=W-40~50; Base channel steel length=L+150, installation hole distance L1=L+90.
2. The width of A-type fan box does not include the width of belt cover, and the height does not include the height of motor.
3. Type A installation, the motor is placed on the top of the chassis by default when the number of the air outlet is 1,2,3,5,6,8,9,10,11,12 and the motor frame number is ≤ 132; When the motor frame number is>132, the motor is placed on the box base by default. If it needs to be placed in other places, please consult the factory and indicate it when ordering.
Type A installation. When the air inlet number is 4 and 7, the motor is placed on the base of the box, regardless of the size of the motor frame number.
4. See precautions for specific production and manufacturing requirements.
