DPT type silent duct fan

Category：

Centrifugal box fan

E-mail：shangfgkyx@infore.com

Add：400-1818-686

leave us a message

Details
Appearance and size

Commodity name: DPT type silent duct fan
Commodity ID: 1060226667567210496

I. Product overview
1.1. The DPT silent duct fan is a box-type centrifugal fan with a forward-turning multi-blade impeller and a low-noise outer rotor motor. The motor is directly connected with the impeller; The product is composed of low-noise forward tilt multi-wing impeller, motor, anechoic box, etc. The noise of this series of fans is lower than that of belt drive fan box.
1.2. The whole machine is mini and small, with large air volume and low noise performance.

2、 Product working conditions

working temperature	humidity	Medium conditions	Working power supply
-20~ +40℃	<90%	Air (dust content not more than 100mg/m3	220 V/50Hz (Indicate when ordering with special requirements)

3、 Product application
Fans can be widely used in office, hotels, museums, gymnasiums, culture, education and health and other air-conditioning engineering ventilation.

4、 Product configuration
4.1 Standard configuration
● Impeller;
● Casing (casing, collector, support);
● Outer rotor motor;

4.2 Spare parts and accessories (indicate whether to purchase when ordering)
※ Silencing box;
※ Control box;
※ Muffler;
※ Butt flange;

5.1. The impeller and casing of the fan are made of high-quality steel plates, all of which are produced by mold, and are formed without welding. The balance accuracy of the impeller is not more than 5.6 after dynamic and static balance correction
5.2. The anechoic box of the fan adopts the frame and box plate assembly design, and the frame adopts the steel frame formed by one stretch of the advanced metal cold bending unit (aluminum alloy profile frame can also be used according to the user's needs); The product can be disassembled on site.

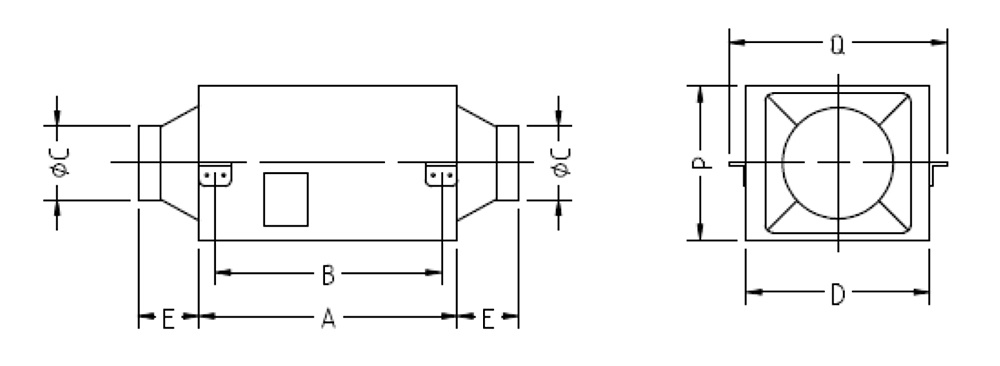

Overall dimensions of DPT silent duct fan

model	A	B	C	D	E	P	Q	Pipe diameter
DPT10-12B	340	298	98	240	70	200	285	100
DPT10-24B	340	298	98	240	70	200	285	100
DPT15-32B	340	298	148	240	75	240	285	150
DPT15-42B	390	348	148	270	75	280	315	150
DPT20-54B	420	378	196	340	90	280	385	200
DPT20-54C	490	448	196	370	90	320	445	200
DPT20-65B	520	478	196	400	90	365	445	200
DPT25-76B	590	548	246	400	90	380	445	250
DPT25-76C	590	548	246	400	90	380	445	250
DPT25-86B	660	618	246	400	90	420	525	250
