Commodity name: HTFC - Ⅰ, Ⅱ cabinet centrifugal fan
Commodity ID: 1060228917450596352

I. Product overview
1.1. HTFC cabinet centrifugal fan is a high efficiency and low noise box centrifugal fan. The product is composed of low-noise forward tilt multi-wing centrifugal fan, motor, bearing, transmission parts, anechoic box, etc. According to the different installation positions, 12 air inlet and outlet positions with different angles are provided to meet the different installation needs of users. According to the different requirements of fire fighting and ventilation, there are two types: type A and type B. Type A motor is installed outside the box for fire fighting and smoke exhaust. According to the provisions of the CCCF rules, it is named "centrifugal fire fighting and smoke exhaust fan", and has been subjected to the high temperature resistance test by the National Fire Conformity Assessment Center in accordance with GA211-2009 High Temperature Resistance Test Method for Fire Fighting and Smoke Exhaust Fan, and has obtained the CCCF certification. The fan can operate continuously for 60 minutes under the high temperature condition of 280 ℃, Type B motor is installed in the box for ventilation.
1.2. The fan is divided into 12 specifications of 9 "~40" according to diameter, the series air volume is 1650~112619m3/h, and the total pressure is 152~1124Pa. After continuous improvement and development, HTFC cabinet centrifugal fan can be divided into two types: I and II. Type I is single-speed type and type II is double-speed type. It is equipped with two-speed motor to realize two-speed speed regulation, which can meet the needs of users for performance regulation at different operating points. The fan can also be equipped with variable frequency motor and variable frequency controller to realize variable frequency speed regulation. It is recommended to lock the regulating frequency in the range of 25Hz~50Hz.
1.3. In order to meet the needs of explosion-proof environment, the fan can be made into explosion-proof fan with explosion-proof grade of EXdlIIBT4, which is suitable for places with flammable and explosive gases.
1.4. In order to meet the requirements of noise in different places, the fans can be equipped with mufflers of different lengths, and the fan silencing box can also be thickened to reduce the fan noise.
1.5. The fan can be equipped with primary, medium or high efficiency filters to improve the cleanliness of the air. The actual pressure loss should be considered when configuring the filter, and the length of the fan body should be appropriately increased.

2、 Product working conditions

working temperature	High temperature resistance	humidity	Medium conditions	Working power supply
-20~ +40℃(Continuous operation)	100 ℃ (continuous for 20 hours) 280 ℃ (continuous for 60 minutes)	<90%	air	Three-phase 380V/50Hz

3、 Product application
Fans can be widely used in hotels, restaurants, auditoriums, cinemas, basements, factories, mines, enterprises, office buildings and other places for ventilation and smoke exhaust, especially for places requiring low noise and large air volume ventilation and smoke exhaust.

4、 Product configuration

4.1 Standard configuration
● Impeller;
● Movement (casing, collector, support);
● Motor;
● Bearing;
● Spindle;
● Pulley and belt;
● Belt cover (type A only);
● anechoic box;
● Motor regulating track;
● Inlet and outlet flanges.
4.2 Spare parts and accessories (indicate whether to purchase when ordering)
※ Damping equipment;
※ Muffler;
※ Filter;
※ Control box;
※ Butt flange;
※ Motor rain cover (type A only).

5、 Product processing technology
5.1. The impeller and casing of the fan are made of high-quality galvanized sheet, all of which are produced by die, riveted, bite and other means. The surface is clean and flat without welding deformation. The balance accuracy of the impeller is not more than 4.0 after dynamic and static balance correction.
5.2. The anechoic box of the fan adopts the frame and box plate assembly design. The frame adopts the steel frame formed by one stretch of the advanced metal cold bending unit (aluminum alloy profile frame can also be used according to the user's needs). The inner and outer plates of the box plate are made of color coated plate, with clean and beautiful surface and strong corrosion resistance. The interlayer filling material is made of expandable polystyrene, EPS fire insulation board composite plate (limited to fire and smoke exhaust), which can further reduce the noise. The product can be disassembled on site.

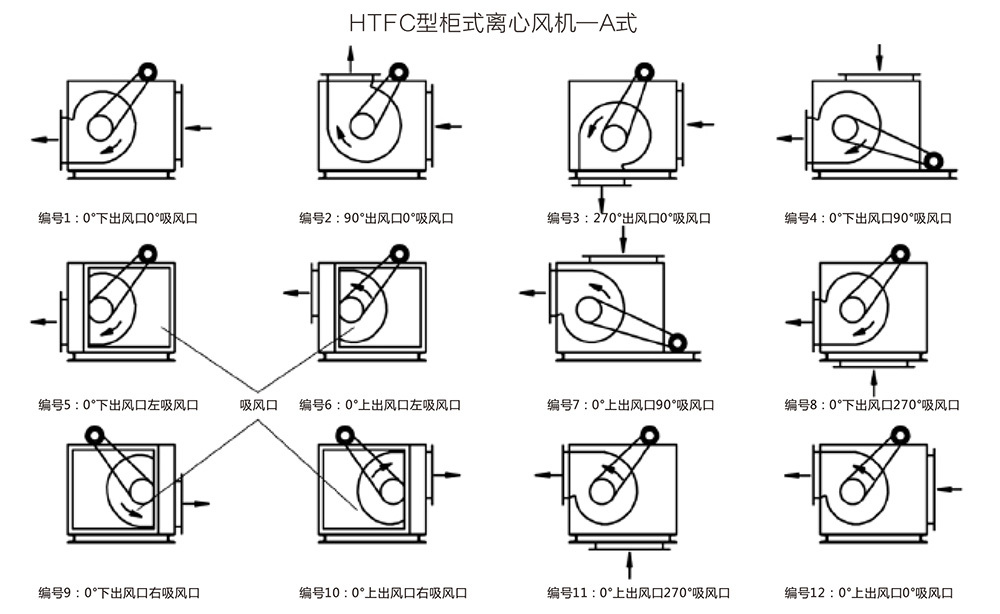

6、 Location drawing of HTFC-V cabinet centrifugal fan

Note: For type A installation, if the air inlet number is 1,2,3,5,6,8, 9, 10.11, 12, and the motor frame number is ≤ 132, the motor is placed on the top of the chassis by default; When the motor frame number>132, the motor is placed on the box base by default. If it needs to be placed in other places, please consult the factory and indicate it when ordering.
Type A installation. When the air inlet number is 4 and 7, the motor is placed on the base of the box, regardless of the size of the motor frame number.

Note: Our company can produce 12 types of air outlet positions according to different needs of users.

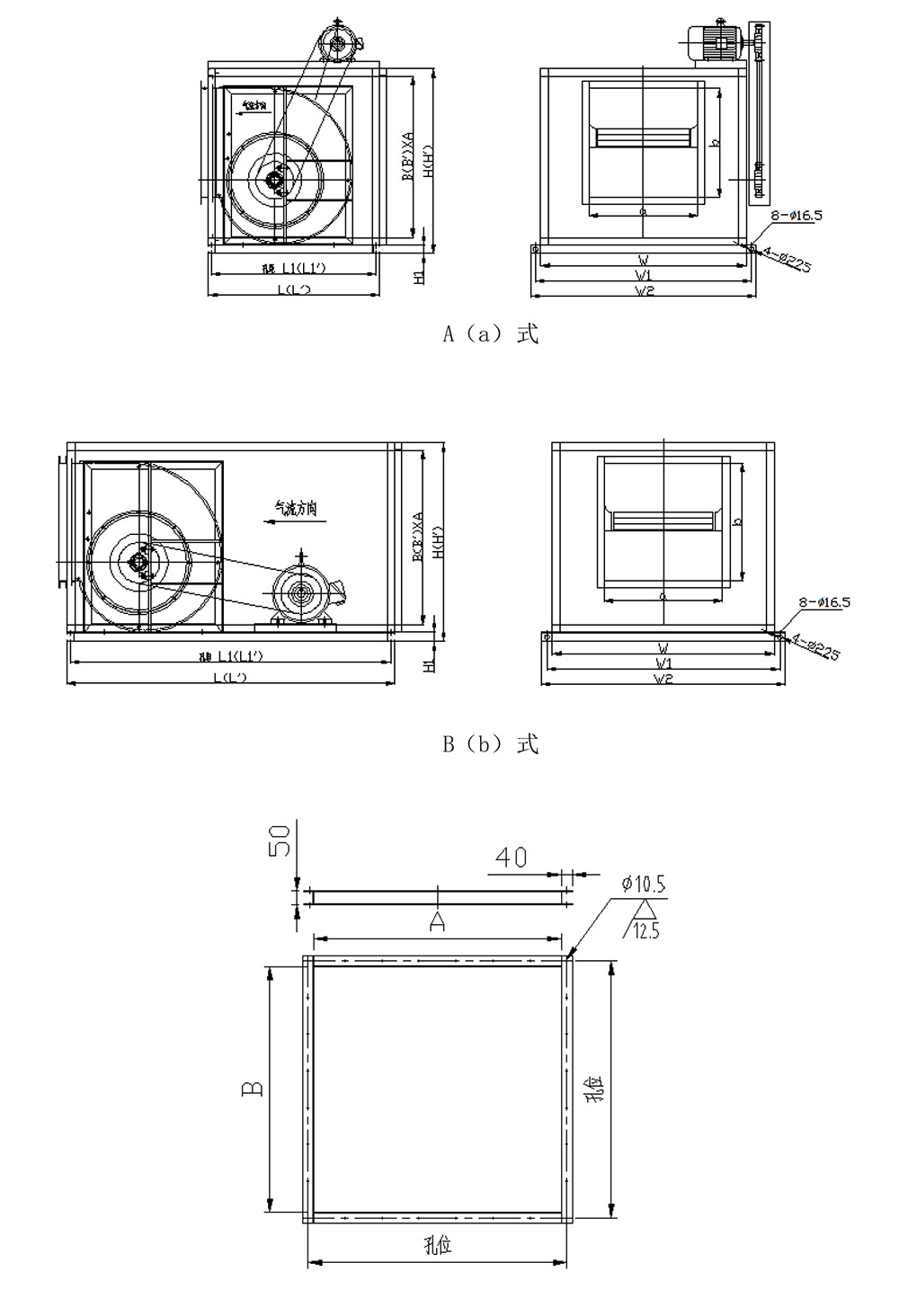

Outline and dimension of HTFC cabinet centrifugal fan

Machine number	height			Type A long				Type B long				width			Tuyere number	Air outlet		Air inlet
	H	H'	H1	L	L1	L'	L1'	L	L1	L'	L1'	W	W1	\N2		a	b		verticalB
9″	580	505	50	640	600	680	640	850	810	930	890	640	730	790	1,5,6,9,10,12	280	280	560	450
															2,3			560	375
															4,7,8,11			560	560
10″	620	550	50	690	650	720	680	920	880	1000	960	700	790	850	1,12	320	320	620	490
															2,3			620	420
															47,8,11			620	610
															5,6,9,10			610	490
12″	720	625	50	740	700	780	740	[050	1010	1150	1110	820	910	970	1,12	380	380	740	590
															2,3			740	495
															4,7,8,11			740	660
															5,6,9,10			660	590
15"	830	740	50	900	860	940	900	1180	1140	1300	1260	940	1030	1090	1,12	460	460	860	700
															2,3			860	610
															4,7,8,11			860	820
															5,6,9,10			820	700
18″	930	825	50	1020	980	1100	1060	1280	1240	1400	1360	1100	1190	1250	1,12	540	540	1020	800
															2,3			1020	695
															4,7,8,11			1020	940
															5,6,9,10			940	800
20″	1043	933	63	1100	1060	1180	1140	1450	1410	1600	1560	1250	1340	1400	1,12	600	600	1170	900
															2,3			1170	790
															4,7,8,11			1170	1020
															5,6,9,10			1020	900
22″	1143	1013	63	1250	1210	1320	1280	1550	1510	1700	1660	1360	1450	1510	1,12	640	640	1280	1000
															2,3			1280	870
															4,7,8,11			1280	1170
															5,6,9,10			1170	1000
25″	1323	1163	63	1380	1340	1500	1460	1700	1660	1900	1860	1520	1610	1670	1,12	730	730	1440	1180
															2,3			1440	1020
															4,7,8,11			1440	1300
															5,6,9,10			1300	1180
28'	1460	1290	80	1480	1435	1600	1565	1820	1775	2050	2005	1650	1740	1800	1,12	800	800	1550	1280
															2,3			1550	1110
															4,7,8,11			1550	1380
															5,6,9,10			1380	1280
30″	1570	1370	80	1580	1535	1700	1655	1920	1875	2150	2105	1720	1810	1870	1,12	880	880	1620	1390
															2,3			1620	1190
															47&11			1620	1480
															5,6,9,10			1480	1390
33'	1690	1510	100	1780	1730	1900	1850	2050	2000	2350	2300	1860	1950	2010	1,12	940	940	1760	1490
															2,3			1760	1310
															4,7,8,11			1760	1680
															5,6,9,10			1680	1490
36″	1840	1630	100	1900	1850	2050	2000	2200	2150	2500	2450	2000	2090	2150	1,12	1050	1050	1900	1640
															2,3			1900	1430
															4,7,8,11			1900	1800
															5,6,9,10			1800	1640
40″	1950	1950	100	1900	1850	1900	1850	2800	2750	3100	3050	2000	2090	2150	1,2,3,12	1150	1150	1900	1750
															4,7,8,11			1900	1800
															5,6,9,10			1800	1750
