Commodity name: HTF axial flow fire and smoke exhaust fan
Commodity ID: 1060226862086447104

1、 Product Overview
1.1. The basic form of HTF axial flow fire and smoke exhaust fan is axial flow structure. The motor is a high-temperature resistant motor. The product is subject to high-temperature resistance test according to GA211-2009 High-temperature Resistance Test Method for Fire and Smoke Exhaust Fan. It has passed the 3C compulsory certification of the Fire Product Conformity Assessment Center of the Ministry of Public Security. It can operate continuously for more than 60 minutes under the medium temperature of 280 ℃ and the temperature of 100 ℃ for 20 hours/time without damage, and can be ventilated Smoke exhaust for both purposes.
1.2. Product classification
HTF-1 type, divided into 300~1600 mm in diameter, 19 specifications, air volume of 1600~14000 m3/h, total pressure of 50~1000Pa; HTF-II type, divided into 500~1500 mm in diameter, 13 specifications, air volume of 3500~11000 m3/h, total pressure of 90~900 Pa; HTF-1II type (impeller is inclined flow type), divided into 300~1400mm in diameter, 16 specifications, air volume of 1400~100000m3/h, total pressure of 90~1500Pa; HTF-IV type (impeller is inclined flow type), divided into 400~1400mm in diameter, 14 specifications, air volume of 2500~100000m3/h, total pressure of 90~1300Pa. According to the speed regulation mode, it can be divided into single-speed, double-speed and variable-frequency (the fan motor adopts variable-frequency motor, equipped with variable-frequency controller, and implements variable-frequency speed regulation to meet the needs of different working conditions. It is recommended to lock the regulation frequency at 25Hz~50Hz). In order to meet the needs of explosion-proof environment, the fan can be made into explosion-proof fan with explosion-proof grade of EXdIIBT4.
1.3. In order to meet the noise requirements of different places, fans can be equipped with mufflers of different lengths.

2、 Product working conditions

working temperature	High temperature resistance	humidity	Medium conditions	Working power supply
-20~ +45℃(Continuous operation)	100 ℃ (continuous for 20 hours) 280 ℃ (continuous for 60 minutes)	<90%	air	Three-phase 380V/50Hz

3、 Product application
Fans can be widely used in high-rise buildings, industrial and mining enterprises, hotels, restaurants, museums, gymnasiums, basements and other ventilation and smoke exhaust places.

4、 Product configuration
4.1 Standard configuration
● Impeller;
● Casing (outer cylinder, guide vane, inner cylinder, motor support);
● Motor;
● Foot;
4.2 Spare parts and accessories (indicate whether to purchase when ordering)
※ Damping equipment;
※ Mesh cover;
※ Control box;
※ Butt flange;

5、 Product processing technology
5.1 The fan impeller is made of steel, the hub is hydraulically stretched, the blade is hydraulically formed after stamping, and the blade is welded and assembled with the hub. The impeller has been calibrated by static and dynamic balance, and the balance accuracy is not greater than G5.6.
5.2 The outer cylinder flange is formed by integral spinning and flanging.

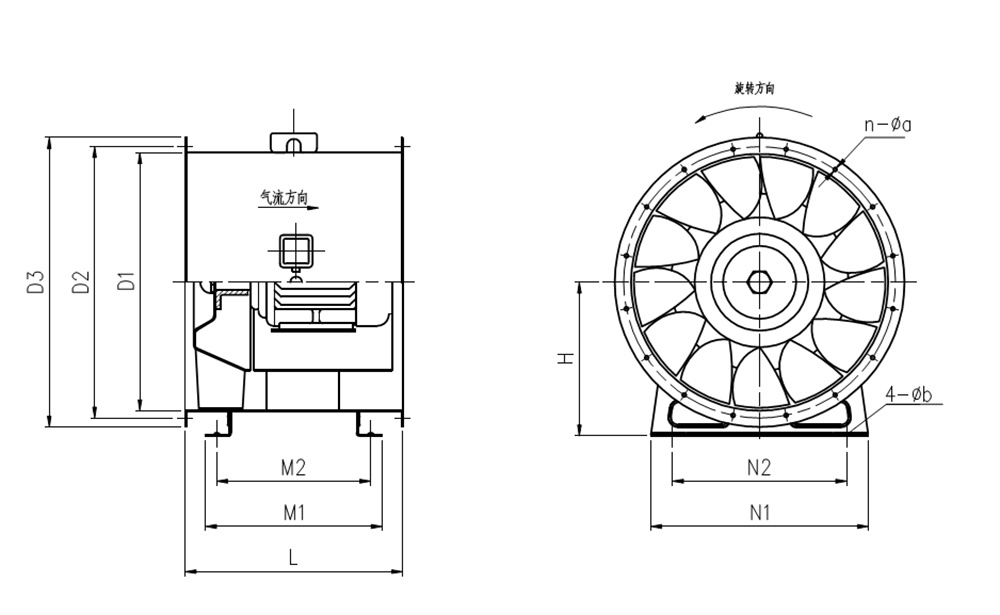

Outline and installation dimensions of HTF-I axial flow fire and smoke exhaust fan

Machine number	D1	D2	D3	L	Ml	M2	H	N1	N2	φb	nxφa
3	φ306	φ345	φ376	300	246	210	220	220	170	φ8.5	4xφ10
3.5	φ356	φ395	φ426	300	246	210	245	220	170	φ8.5	4xφ10
4	φ406	φ445	φ476	400	344	300	265	300	240	φ1l	8xφ10
4.5	φ456	φ495	φ526	400	344	300	295	300	240	φ1l
5	φ508	φ545	φ578	530	424	380	315	400	320	φ13
5.5	φ558	φ595	φ628	530	424	380	355	400	320	φ13
6	φ608	φ650	φ688	530	432	380	380	500	400	φ16	12xφ10
6.5	φ658	φ700	φ738	530	432	380	400	500	400		12xφ10
7	φ708	φ750	φ788	530	442	380	425	600	480		12xφ12
7.5	φ758	φ795	φ838	530	442	380	460	600	480
8	φ808	φ850	φ888	530	442	380	490	600	480

Machine number	Supporting motor power	DI	D2	D3	L	Ml	M2	H	N1	N2	φb	nxφa
8	4P/llkW	φ808	φ850	φ888	700	562	500	490	600	480	φ6	12xφ12
9	6P/5.5kW、4P/11 kW、4P/15kW	φ908	φ950	φ988	700	570	500	550	700	580	φ16	12xφ12
9	4P/18.5kW	φ908	φ950	φ988	800	650	580	550	700	580		12xφ12
10	6P/7.5kW 4P/llkW、4P/15kW 4P/18.5kW、4P/22 kW	φ1010	φ1055	φ1090	800	650	580	615	700	580		16xφ14.5
11	6P/llkW_x 4P/15 kW 4P/18.5kW、4P/22 kW、4P/30kW	φ111O	φ1155	φ1190	800	650	580	645	800	650		16xφ14.5

Machine number	Supporting electric tn power	DI	D2	D3	L	Ml	M2	H	N1	N2	φb	nxφa
12	8P/llkW、6P/15kW	φ1210	φ1270	φ1310	800	650	580	700	900	750	φ19	16xφ14.5
	6P/18.5kW、6P/22kW、4P/45 kW				900	720	650
13	8P/15kW 6P/18.5kW, 6P/22kW、6P/30kW	φ1310	φ1370	φ1410	900	720	650	750	900	750
14	8P/18.5kW、6P/22kW、6P/30kW	φ1410	φ1470	φ1510	900	718	650	800	1000	850
	6P/37kW				1000	793	725
15	6P/22kW、6P/30kW	φ1510	φ1570	φ1610	900	718	650	850	1000	850
	6P/37kW、6P/45kW				1000	793	725
16	8P/18.5kW、6P/30kW	φ1610	φ1670	φ1710	900	718	650	900	1100	950
	6P/37kW、6P/45kW				1100	868	800

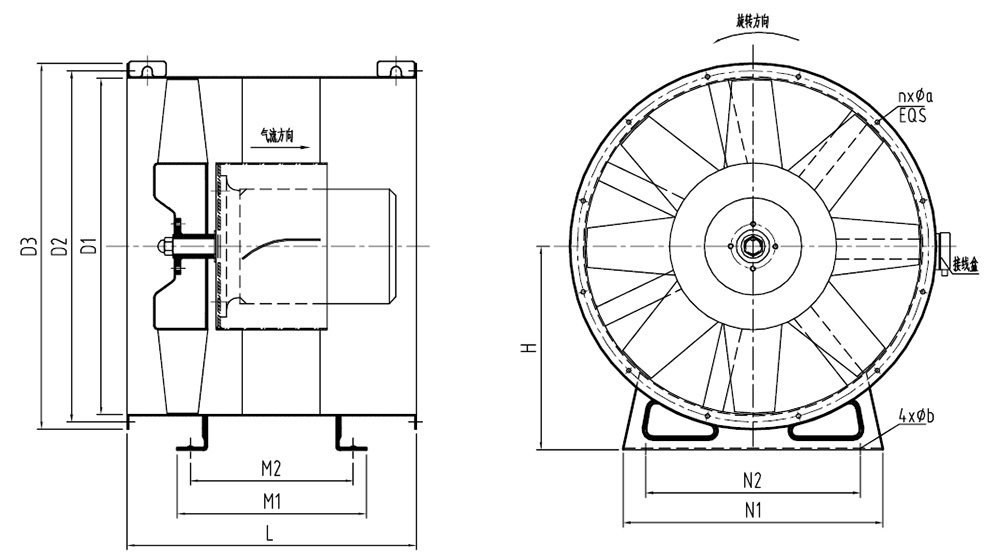

Outline and installation dimensions of HTF-II axial flow fire and smoke exhaust fan

Machine number	DI	D2	D3	L	Ml	M2	H	N1	N2	φb	nxφa
5	φ508	φ545	φ578	530	424	380	315	400	320	φ13	8xφl0
5.5	φ558	φ595	φ628	530	424	380	355	400	320	φ13	8xφl0
6	φ608	φ650	φ688	530	432	380	380	500	400	φ16	12xφ10
6.5	φ658	φ700	φ738	530	432	380	400	500	400		12xφ10
7	φ708	φ750	φ788	700	562	500	425	600	480		12xφ12
8	φ808	φ850	φ888	700	562	500	490	600	480		12xφ12

Machine number	Supporting motor power	DI	D2	D3	L	Ml	M2	H	N1	N2	φb	nxφa
9	4/6P-18.5/6.2kW、4/6P-15.5/5.1kW、4/6P-12/4kW	φ908	φ950	φ988	800	650	580	550	700	580	φ19	12xφ12
10	4/6P-18.5/6.2kW、4/6P-15.5/5.1kW、4/6P-12/4kW	φ1010	φ1055	φ1090	800	650	580	615	700	580		16xφ14.5
10	4/6P-24/8.5kW	φ1010	φ1055	φ1090	900	720	650	615	700	580
11	4/6P-15.5/5.1kW、4/6P-18.5/6.2kW	φ1110	φ1155	φ1190	800	650	580	645	800	650
11	4/6P-24/8.5kW、4/6P-33/llkW	φ1110	φ1155	φ1190	900	720	650	645	800	650

Machine number	Supporting motor power	DI	D2	D3	L	Ml	M2	H	N1	N2	φb	nxφa
12	6/8P-17/8.5kW、6/8P-20/10kW、6/8 P-2 2/1 lkW	φ1210	φ1270	φ1310	900	720	650	700	900	750	φ19	16xφ14.5
13	6/8P-17/8.5kW、6/8 P-2 2/1 lkW	φ1310	φ1370	φ1410	900	720	650	750	900	750
	6/8P-30/15kW				1000	795	725
14	6/8 P-2 2/1 lkW	φ1410	φ1470	φ1510	900	718	650	800	1000	850
	6/8P-30/15kW、6/8 P-3 7/2 2 kW				1000	793	725
15	6/8 P-2 2/1 lkW	φ1510	φ1570	φ1610	900	718	650	850	1000	850
	6/8 P-3 0/15 kW、6/8P-37/22kW				1100	868	800

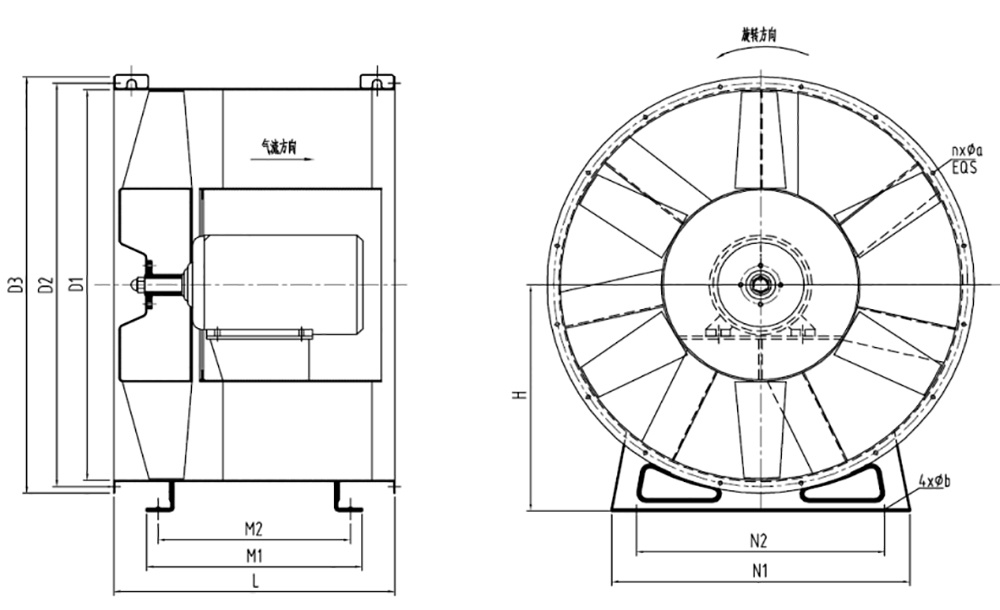

Outline and installation dimensions of HTF-1II axial flow fire and smoke exhaust fan

Machine number	Motor power	DI	D2	D3	L	Ml	M2	H	N1	N2	φb	nxφa
3	4p/0.18kW,2p/0.55kW,2p/0.75kW,2p/1.1kW	φ306	φ345	φ376	300	246	210	220	220	170	φ8.5	4xφ10
3.5	4p/0.25kW,2p/0.75kW 2p/l.lkW_f 2p/1.5kW	φ356	φ395	φ426	300	246	210	245	220	170
4	4p/0.75kW, 2p/2.2kW 2p/3kW、2p/4kW	φ406	φ445	φ476	400	344	300	265	300	240	φ1l	8xφ10
4.5	4p/l.lkW,2p/3kW 2p/4kW, 2p/5.5kW	φ456	φ495	φ526	400	344	300	295	300	240
5	4p/l.lkW, 4p/2.2kW, 2p/4kW、2p/5.5kW	φ508	φ545	φ578	530	424	380	315	400	320	φ13
5.5	4p/1.5kW,4p/3kW 2p/5.5kW, 2p/7.5kW	φ558	φ595	φ628	530	424	380	355	400	320
6	4p/2.2kW,4p/3kW 4p/5.5kW	φ608	φ650	φ688	530	432	380	380	500	400	φ16	12xφ10
	2p/llkW				700	552	500
6.5	4p/3kW,4p/5.5kW 4p/7.5kW	φ658	φ700	φ738	530	432	380	400	500	400
	2p/llkW				700	552	500
7	6p/4kW, 4p/7.5kW	φ708	φ750	φ788	530	442	380	425	600	480		12xφ12
	4p/llkW, 4p/15kW				700	562	500
8	6p/5.5kW,	φ808	φ850	φ888	530	442	380	490	600	480
	4p/llkW, 4p/15kW				700	562	500
	4p/18.5kW,				800	642	580
9	6p/7.5kW	φ908	φ950	φ988	700	570	500	550	700	580
	4p/18.5kW,4p/22kW, 4p/30kW				800	650	580
10	6pllkW, 4p/22kW、4p/30kW	φ1010	φ1055	φ1090	800	650	580	615	700	580		16xφ 14.5
	4p/37kW				900	720	650
11	6p/18.5kW, 6p/22kW	φ111O	φ1155	φ1190	800	650	580	645	800	650
	6p/30kW, 4p/37kW				900	720	650
12	6p/22kW	φ1210	φ1270	φ1310	800	650	580	700	900	750	φ19
	6p/30kW，6p/37kW,4p/45kW				900	720	650
13	6p/22kW, 6p/30kW	φ1310	φ1370	φ1410	900	720	650	750	900	750
	6p/37kW,				1000	795	725
	6p/45kW,				1100	870	800
14	6p/22kW, 6p/30kW	φ1410	φ1470	φ1510	900	718	650	800	1000	850
	6p/37kW				1000	793	725
	6p/55kW				1100	868	800

Outline and installation dimensions of HTF-IV axial flow fire and smoke exhaust fan

Machine number	D1	D2	D3	L	Ml	M2	H	N1	N2	φb	nxφa
4	φ406	φ445	φ476	400	344	300	265	300	240	φ11	8xφ10
4.5	φ456	φ495	φ526	400	344	300	295	300	240	φ11
5	φ508	φ545	φ578	530	424	380	315	400	320	φ13
5.5	φ558	φ595	φ628	530	424	380	355	400	320	φ13
6	φ608	φ650	φ688	530	432	380	380	500	400	φ16	12xφ10
6.5	φ658	φ700	φ738	700	552	500	400	500	400		12xφ10
7	φ708	φ750	φ788	700	562	500	425	600	480		12xφ12
8	φ808	φ850	φ888	800	642	580	490	600	480
9	φ908	φ950	φ988	800	650	580	550	700	580
10	φ1010	φ1055	φ1090	900	720	650	615	700	580		16xφ14.5
11	φ111O	φ1055	φ1190	800	650	580	645	800	650
12	φ1210	φ1270	φ1310	1000	795	725	700	900	750	φ19
13	φ1310	φ1370	φ1410	1000	795	725	750	900	750
14	φ1410	φ1470	φ1510	1100	868	800	800	1000	850
